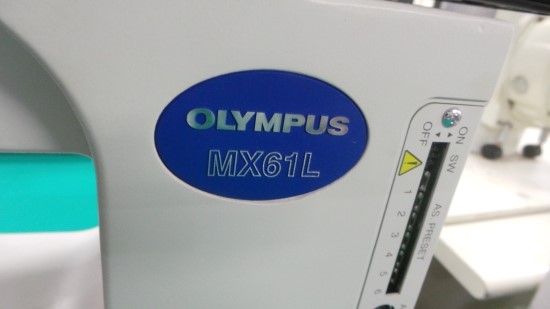

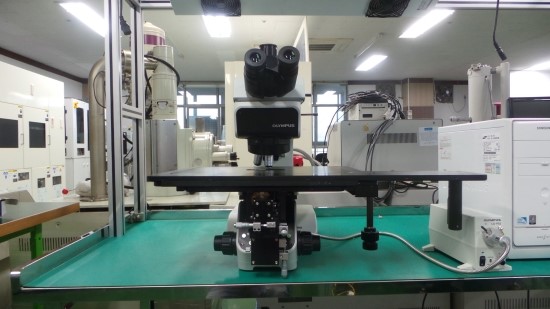

OLYMPUS MX61L --sold out--



Semiconductor/FPD Inspection Microscope Specifications			MX61L	MX61
Optical System			UIS2 Optical System (Infinity-corrected)
Microscope Frame	Observation Method		BF/DF/DIC/KPO*/FL
	Reflected/Transmitted		Reflected/Transmitted
	Illuminator		Microscope Frame All-in-one (BF, DF + 1 Option)
	Illumination System	Reflected Light	100 W Halogen/100 W Mercury/75 W Xenon
		Transmitted Light	Fiber Light Guide

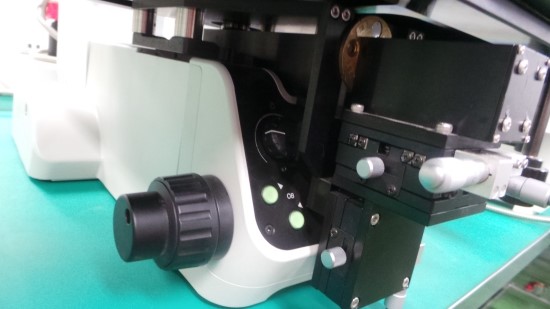

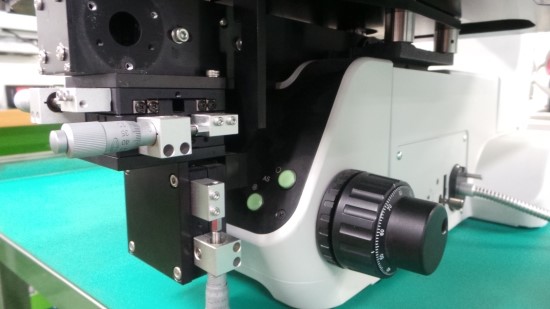

	Focus	Motorized/Manual	Manual
		Stroke	32 mm
		Resolution/Fine Adjustment Sensitivity	Fine Stroke per Rotation 0.1 mm
		Maximum Specimen Height	30 mm

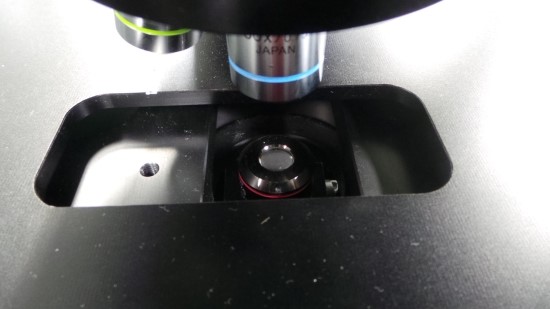

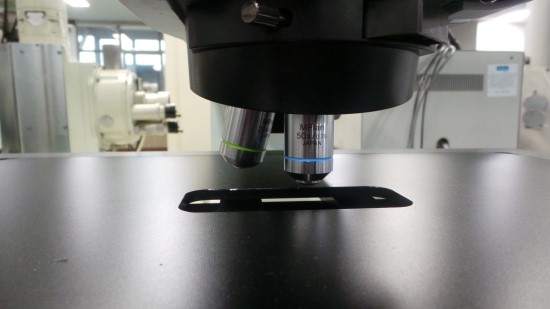

	Revolving Nosepiece	Motorized Type	Sextuple for BF/DIC Quintuple for BF/DF/DIC Centerable Quintuple for BF/DF/DIC Sextuple for BF/DF/DIC
		Manual Type	-

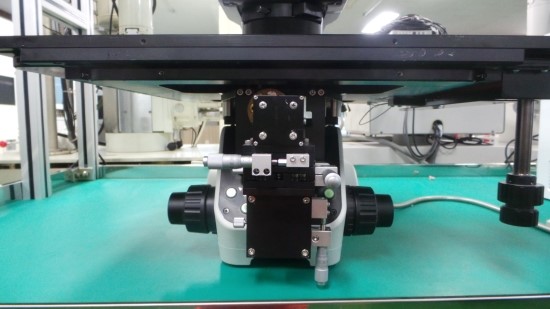

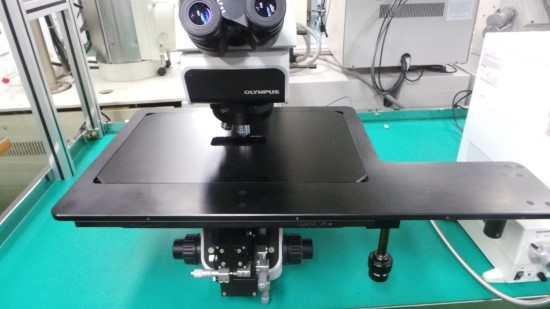

Stage	Stroke		14x12 inch Right Handle Stage: 356(X)x305(Y)mm (Transmitted Light Range 356x284 mm)	8x8 inch Right Handle Stage: 210(X)x210(Y)mm (Transmitted Light Range 189x189 mm) 6x6 inch Right Handle Stage: 158(X)x158(Y)mm
Observation Tube	Widefield (Field Number 22)	Inverted Image	Binocular/Trinocular Observation Tube
		Erect Image	Trinocular Observation Tube
	Super Wide Field (Field Number 26.5)	Inverted Image	Trinocular Observation Tube
		Erect Image	Tilting Trinocular Observation Tube
Option Unit			IR Unit/Motorized Stage/Wafer Loader
Dimensions			710(W)x843(D)x507(H)mm (in Standard Combination)	509(W)x843(D)x507(H)mm (in Standard Combination)
Weight			51 kg (in Standard Combination)	40 kg (in Standard Combination)
Remark			*Simple Polarized Light Observation
